Laundry Flatwork Ironer Belts Padding & Accessories



We manufacture kinds of laundry parts for commercial laundry flatwork ironer and feeder process, parts include of flatwork ironer padding and laundry ironer belts, folder cotton band and polyester feeding belt, ironer guide tape,laundry belt fastener and fastener equipment...we adopt best material to reach long working life time and effect. Ironing Textile Belts for equipping virtually all ironer brand: Electrolux (Dubix), Lapauw, Jensen, Girbau, IPSO-Alliance, Primus, Danube, Kannegiesser, Passat, Lavater, Biko, Olma, Vega System, Chicago Dryer, Staht, GMP...

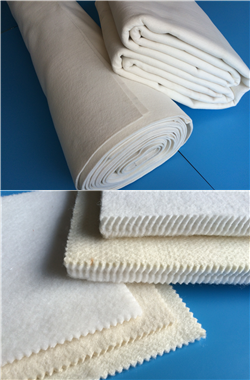

Flatwork Ironer Padding Laundry FeltsFlatwork Ironer Padding Laundry Felts

Flatwork Ironer Laundry Padding Felts are use on commercial ironer machine, we choose high quality fiber of meta aramid(nomex) and polyester, ours rich experience workers and superior techniques team offering stable and high quality ironer felts, the ironer padding are suitable for all brand of commercial flatwork Ironers.


*Specification:
L-011: 100% Polyester ironer padding (Working temp max. 160 ° C.)
L-012: Polyester meta aramid ironer padding  (Working temp max. 190 °C.)
L-013: 100%nomex( ironer padding (Working temp max. 240 °C.)
* Width up to 4200 mm
* Thickness from 3mm to 22mm.
* Weight from 400g/m2 to 4500 g/m2
* Length: can be processed into rolls (30m to 52m long) or cut to your desired size.

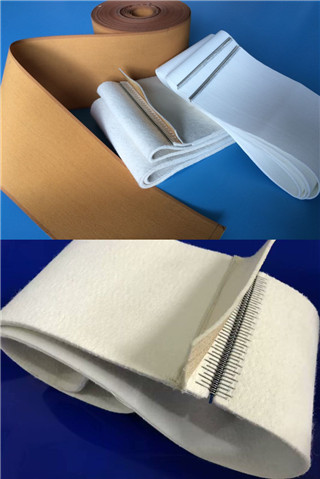

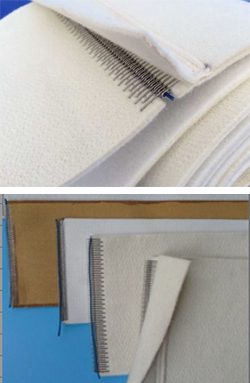

Flatwork Ironer Belt Laundry Ironer RibbonFlatwork Ironer Belt Laundry Ironer Ribbon


We offer a variety of flatwork ironer belt for commercial laundry drying (also called heated cylinder belts and ironer ribbon) for all flatwork ironers:(Electrolux, Girbau, Primus, Alliance (Ipso),chicago,sealion …)


L-021 100% Aramid  fibers needled to the aramid scrim.  (Working temp max. 240 °C.)

L-022 Blended Aramid-polyester felt, Aramid scrim cloth or Polyester cloth. (Working temp max. 210 °C.)

L-023 Aramid fiber woven cloth, also called Chicago belt,Nomex Belting (yellow). Special used on American Chicago machine.(Working temp max. 200 °C.)

L-024 Polyester Woven Belt,also called canvas belt.Suitable for Chinese ironing machine (Working temp max. 160°C.)


we can offer  Commercial Laundry Belting as following:

* Supply special width per roll.
* tailor-made and equipped with connectors and a protective flap, supply special length with ready-made belts with stainles steel hooks and pins.

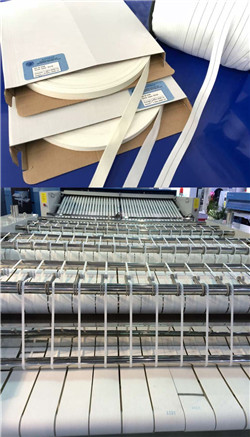

Flatwork Ironer Guide TapesFlatwork Ironer Guide Tapes

Flatwork Ironer Guide Tape for commcercial laundry working high temperature with ironer padding and ironer belts, Hongkong XinYun offering 100% Polyester guide tape, nomex Polyester guide tape and 100% Nomex guide tapes cater for any brand of flatwork ironer machine.


100% Polyester guide tape for steam heated ironer, nomex Polyester guide tape and 100% Nomex guide tapes for gas heated ironer.


Our guide tape availble of 100m in carton box, 400m in spool.

Width from 13mm, 15mm, 20mm and any size customization.

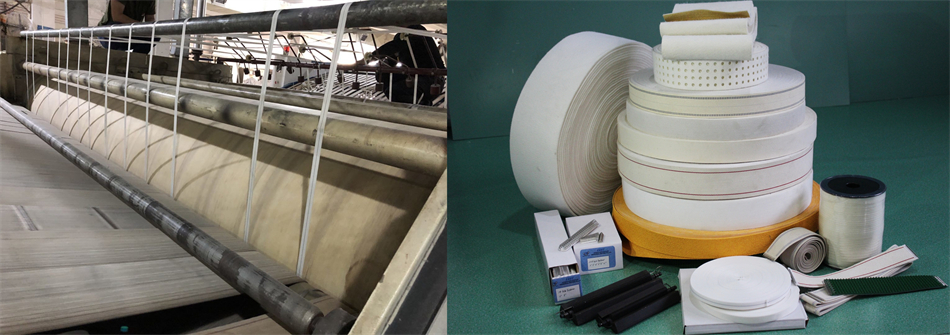

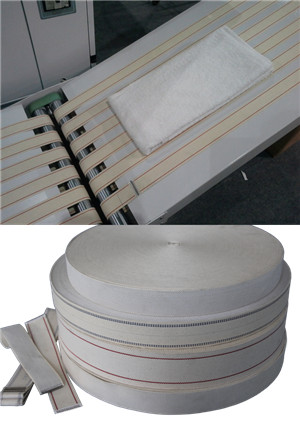

Laundry Folding Feed BeltsLaundry Folding Feed Belts


Folding cotton belts for commercial laundry ironer folder, good quality flatwork ironer folder ribbon used on folding machine and feeding machine:


L-041 Cotton belt--100% cotton with small shrinkage

L-042 Cotton rubber belt --rough elastic surface and woven cotton in the bottom, for non-slip application

L-043 Elastic belt--with great stretch and elasticity

L-044 Anti-static cotton belt--Cotton,polyester and static wire.



* Standard width:50mm(2”),75mm(3”)

* Standard length:100m/roll

* Supply special width per roll (MOQ3500m for customized design)
* Supply special length with ready-made belts with stainles steel hooks and pins.

* Lacing Options:#25 (#0)

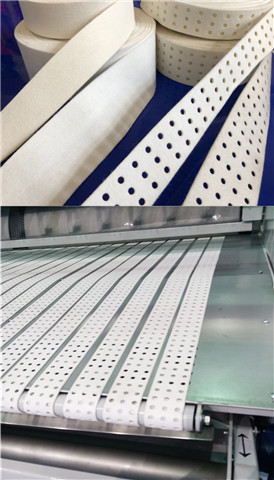

Polyester Feeding Belts Ironer Feeder BandPolyester Feeding Belts Ironer Feeder Band


Polyester feeding belts and perforated feed belts are on the front laundry ironer conveyor for feeding the linen into the ironer more smooth when put on the polyester feeder belt, our feeder band/ribbon or perforated feed belt are made of special 100% polyester fiber needled by a heavy-duty needle punching machine and heat setting, one side is a rough surface to increase the grip of the belt.


L-051 Ironer Polyester feeder belt--100% polyester feeding band with density 1200g,can sew to endless,joint with fastener hooks both edges are melted, or turly endless.

L-052 Perforated belt for the vacuum feeder--100% Polyester needled felt with special finishing and heat setting.


* Standard width:50mm(2”),75mm(3”),100mm(4”) ,150mm(6”) or any custom width.

* Standard length:20m/roll

* Supply special width per roll
* Supply special length with ready-made belts with stainles steel hooks and pins.

* Lacing Options:#25 clipper hooks

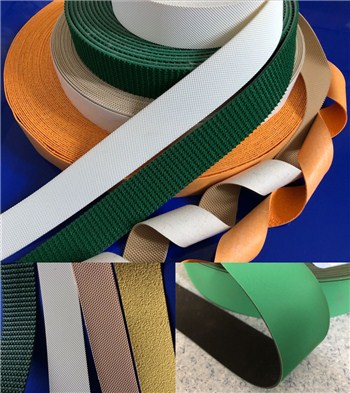

Laundry PVC Belt,Green BeltLaundry PVC Belt,Green Belt


Hongkong Xinyun have kinds of PVC belt, rubber belt, rough belt for laundry ironing roll wrapping and conveyor, you will find the one you need.


* Rough PVC Green for laundry ironer machine folder: 5mm thickness, 50mm width in 50meter roll or make ready with clipper/belt fasteners

* Rough Rubber Belt for laundry ironer roll wrapping: 2mm thickness, 50mm width in 100meter roll or make ready with clipper/belt fasteners

* Green PVC Elastic green top black back for laundry ironer conveyor: 1.5mm, 50mm width in 50meter roll or make ready with clipper/belt fasteners

* PU belt/PU Anti static Belt for laundry ironer conveyor: 1.5mm, 50mm width in 50meter roll or make ready with clipper/belt fasteners

*  Rough Dot Rubber Belt / Silicone Belt for laundry ironing folder: 2mm thickness, 50mm width in 50meter roll or make ready with clipper/belt fasteners

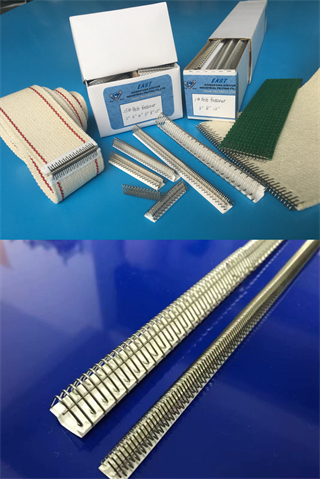

Laundry Belting Fastener Clipper HooksLaundry Belting Fastener Clipper Hooks
Our own belt fastener clippers all are 316 stainless steel materials, models number of # 25 and # 1 belt fastener clipper for laundry cotton belts, ironer belts.

The advantage of our L-061 25 # and 1# clipper hooks is not requiring a binder, easy to operate. Fasteners and belt nip sturdy,our unique structure,ensure fasteners not pull out.


No.25 belt fasteners wire diameter Φ 0.6mm, applied to laundry folder cotton belts, Polyester feeding belting,rubber belt and PVC belt Ect.
Standard size :   2” (200 per box)
                        3” (200 per box)
                        4” (100 per box)
                        6” (48 per box)
                        8” (24 per box)
                        12” (24 per box)

No. 1 belt fastener wire diameter Φ 1.0mm, applied to IRONING FELT BELTS.
Standard size:    6” (24 per box)     8” (12 per box)     12"(12 per box)

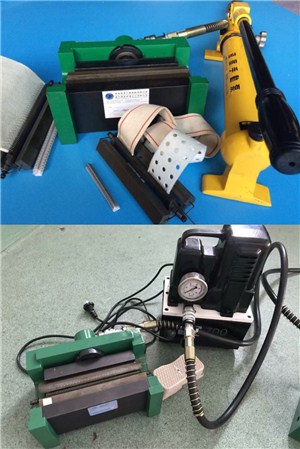

Fasteners Machine Tools For Laundry BeltsFasteners Machine Tools For Laundry Belts


Our own design of belt fastener machine tool for laundry belts, installation tool for ironer cotton belt, we have manual hydrulic pump machine and electric foot pedal fastener machine faster and save time.


Our two number hydrulic pump fastener machines can installate all number of laundry belt fastener of No.25 and No.1 clipper. From the mould and hydraulic system components, through the replacement of mould, to meet # 25 and # 1 fasteners mooth processing. It can lace belts up to #25 of 6" (150mm) and #1of 8"(210mm)wide.



We also can offer only mould (vice) with your machine to belts repair.


Our economical laundry belt hooks machine will be your best choice, easy operation and fast repair the laundry belts.

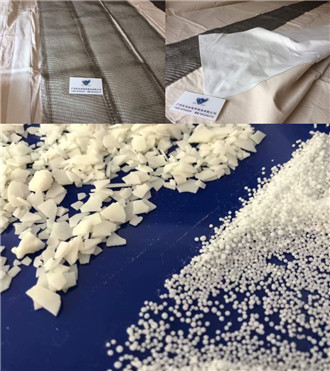

Ironer Wax Laundry WaxIroner Wax Laundry Wax


Ironer Powder Wax is applied to the ironer bed, so that the linen can glide over the surface & produce a well ironed, we have flake ironer laundry wax and paticle ironer wax, laundry ironer wax is package in 50 Pounds with Paper Cylinder.


We also offer Ironer wax cloth and continues cleaning belt pad work together with ironer wax.

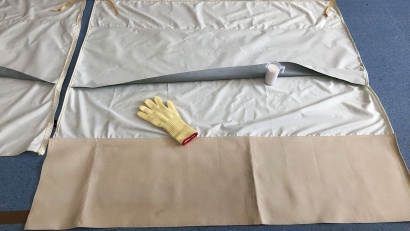

Nomex Wax Cloth Aramid Waxing ClothNomex Wax Cloth Aramid Waxing Cloth
Nomex Wax cloth is used as the application cloth for the wax procedure, our nomex wax cloth is made of nomex materials including nomex cloth, nomex felt fabric, wax pocket with  nomex coated, while ironer machine working on high temperature for waxing application which no need to stop and cooling the flatwork ironer that being more efficient work.

In addition our nomex waxing cloth with silicon flap, and nomex coated pocket can avoid the powder wax, wax paste and cleancoat permeate into the ironer padding, achieving that the ironer padding will not be corroded and clogged by wax, to maintain

the original breathability of the padding and better ironing performance.


Length: 1.6m ,1.8m
Width:1.6m,2.23m,3m,3.3m

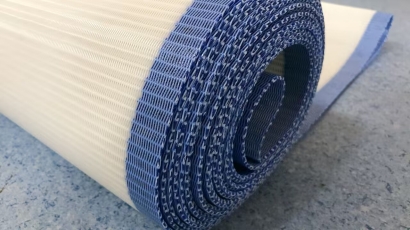

Membrane Press Conveyor BeltsMembrane Press Conveyor Belts

Most membrane presses require a mesh belt, high quality porous constructed polyester mesh press belt which has no prominent seam and allows the easy passage of water, manufactured to withstand pressures of pressing without compacting.

Any size is customized as required.

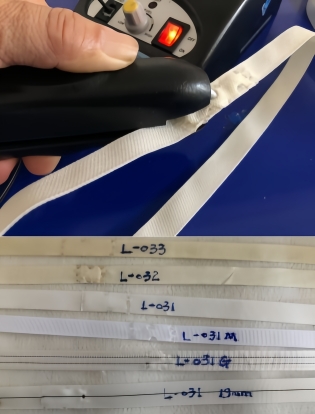

Laundry Guide Tape welderLaundry Guide Tape welder
Ultrasonic dot-line sealer for ironer guide tape welding to join the two ends of the guide tape, we offer guide tape welder to "squeeze" between each end of the guide tape this special adhesive tape, which will be melted with temperature.

The service life of a welded ironer guide tape is longer than that of a tied one, which save time and cost on replacement.

Our welding seal machine can use for all type of guide tape, not only the polyester guide tape and nomex poly guide tape, but also 100%nomex(aramid) guide tape;

Our guide tape welder easy, safe, and simple to operate,ready to use immediately when the power is turned on, and it can be easily sealed by sliding.



Name

 L-035GJ Laundry Guide Tape welder

Frequency

50KHZ

Max power

25W

Consumption electric power

40VA

Timer

Approx 0-5 /S

Power source

AC 100-120V & 210-240V  50/60HZ

Accessories

Host 1pc + handle 1pc + power cable 1pc + connection cable 1pc

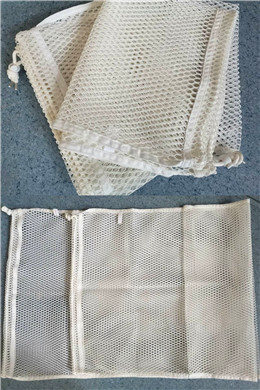

Heavy Duty Mesh Laundry Bag Laundry Net BagsHeavy Duty Mesh Laundry Bag Laundry Net Bags


We offering is the strong heavy duty washable mesh laundry bags, laundry net with drawcord is made of sturdy high-quality (200gsm-280gsm) and 100% polyester mesh material and comes in white. Large and strong mesh laundry bag to protect clothes and sportswear in the washing machine. Suitable for high-temperature washing and drying. Drawstring closure mesh laundry bags provide security that items won’t spill out.Mesh material allows for items to breathe, which keeps dampness and odors away.


Ideal machine washable mesh laundry bag for factories, college, dorm and apartment dwellers.

Size: Length 87cm (34.25") x Width 61cm (24") approx or 36" x 24"

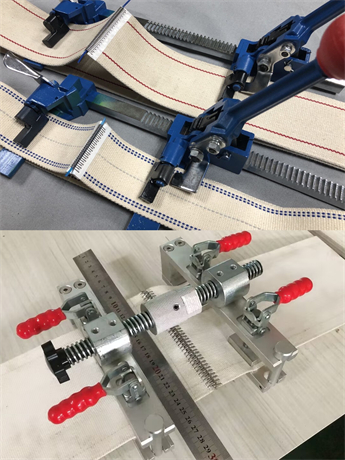

Laundry Ironer Folder Belt Clamp JoinerLaundry Ironer Folder Belt Clamp Joiner

Laundry ironing belt clamp for cotton belt, polyester belts self locking to avoid belt slipping.

Size width up to 5 ", our belt stretching tool any belt replacement will be no brainer for your maintenance.

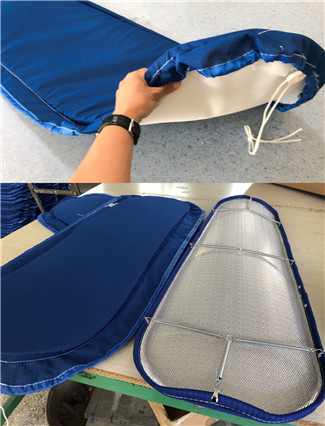

Dry Cleaning Presses Pads and CoverDry Cleaning Presses Pads and Cover

Hongkong XinYun hand made dry cleaning presses press pads by the excellent materials around for breathability and longevity, it can be customs made of size you need, small or large size, along with spring and other accessories as you need. It is made of special material polyester with coated, inside is fire resistant material which is high resilience and breathability.

We can offer any size press pads or convers, inside material for all ironing press dryer model.

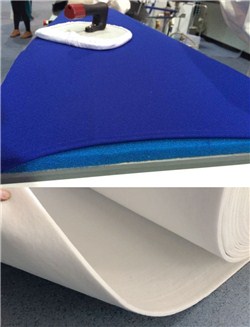

Ironing Board Pad FeltIroning Board Pad Felt


We have ironing board pad felt, ironing board sponge and ironing board colth/cover, we can make this Press pads on 8mm or 10mm for adapt all of the different ironing press models throughout the Dry Cleaning industry.

Our ironing board felt feature:

* Made of polyester felt and Retardant fiber

* A good resilience, makes ironing easy

* Thickness 4mm to 10mm, length 30m to 50m roll







Other Parts






Commercial washer Drain valve


Ironer Spring

Material: galvanization

Size: 500meter / 1000meter



Drying mesh belts

Air finisher covers

Steam air finisher

Pony form finisher cover


Rotary Joint,Swivel union


Green top black back rubber for folder

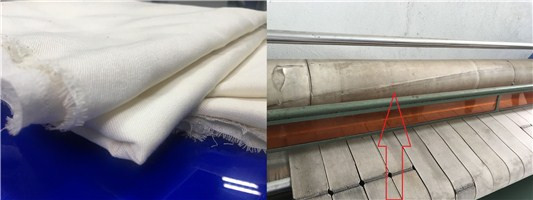

Ironer Roller Nomex CoverIroner Roller Nomex Cover
Ironer roller nomex cover or roller nomex cloth, 100%nomex high resist temperature.
